Technology Parameters：
unit | Remark | ||
Measuring Range | 5~500 | m | When under bad reflective or some special object it will effect the distance and the accuracy a little |
Accuracy | ±1 | m | |
Frequency | 50 | Hz | |
Laser wavelength | 905 | nm | |
Wave Beam | 3.6 | mrad | |
Lens Diameter | 23 | mm | |
Input Voltage | 5 | V | |
Power Supply | Ext.power | － | |
Consumed Power | <500 | mW | |
Output Connector | UART | － | Or RS232 |
Working Temperature | -10～+50 | ℃ | |
Weather Resistant | - | － | |
Size | 71x58x33 | mm | |
weight | <100 | g |

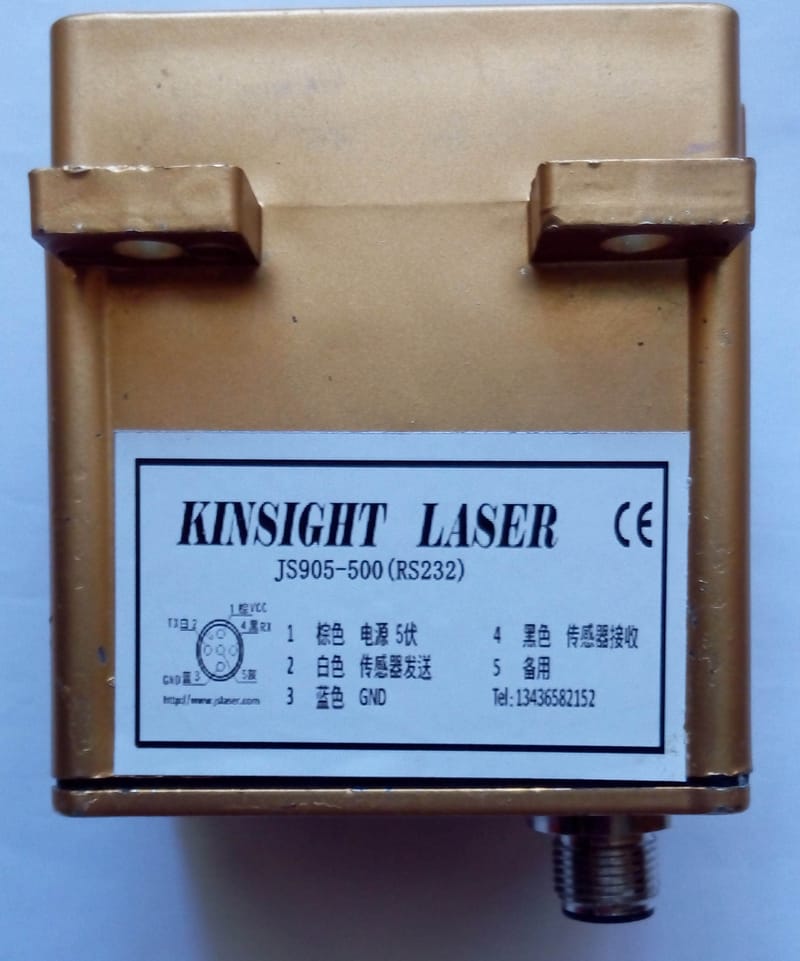

Connecter Define:
Connecter | PIN Define | Line color | remark |
Power (2.4-6V) | Power（V+） | Blue、Green | |
Power（V-） | yellow、orange | ||
Serial (UART) | Emission（TX） | red | UART port Voltage range: limited to 5V |
Receive（RX） | brown |
